Cable and Pipe Routing.

Getting the correct routing of all the pipework and wiring is a challenge when faced with rebuilding, so this section aims to help the process with some pictures of pre-restoration and some following the work.

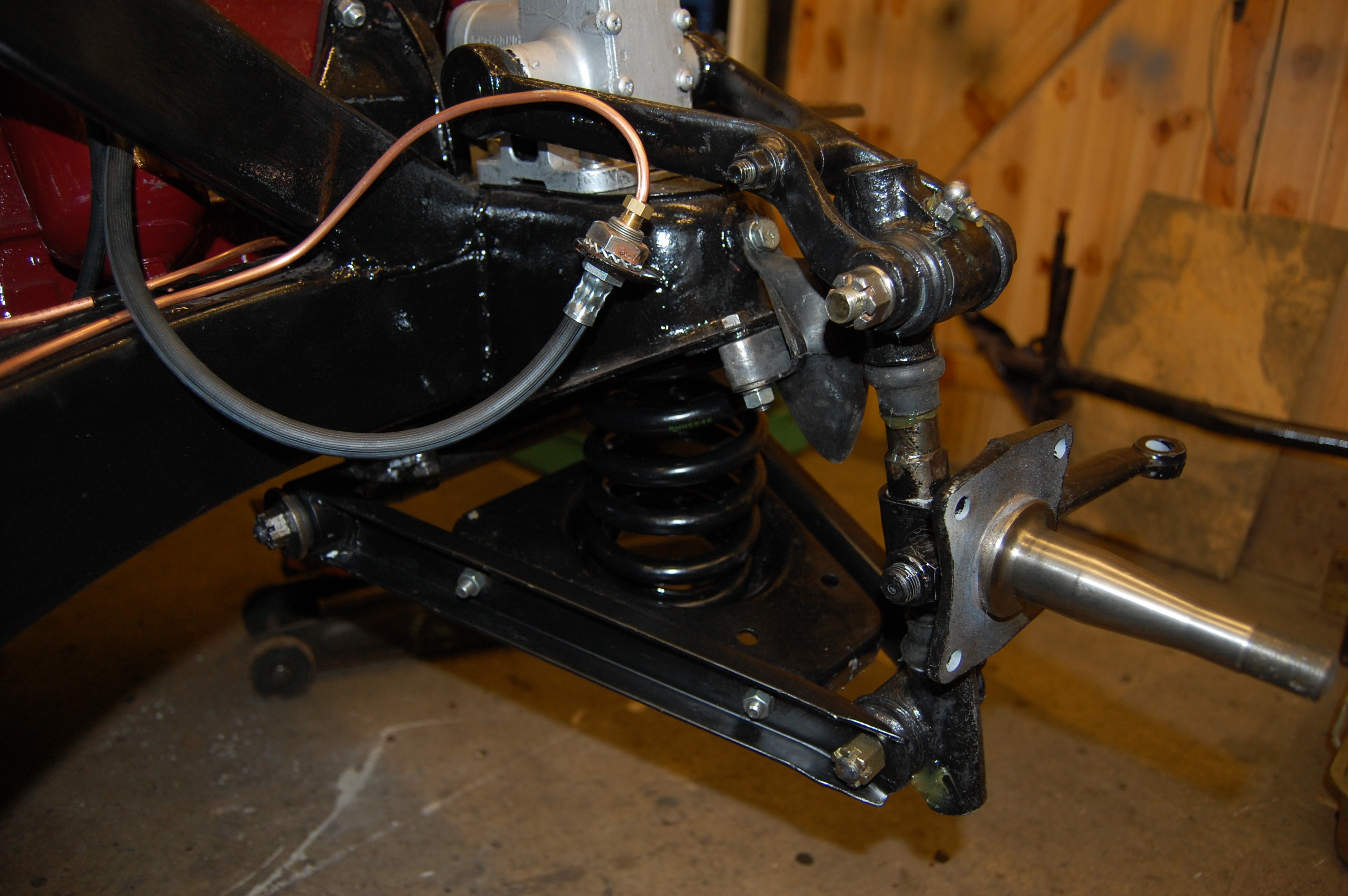

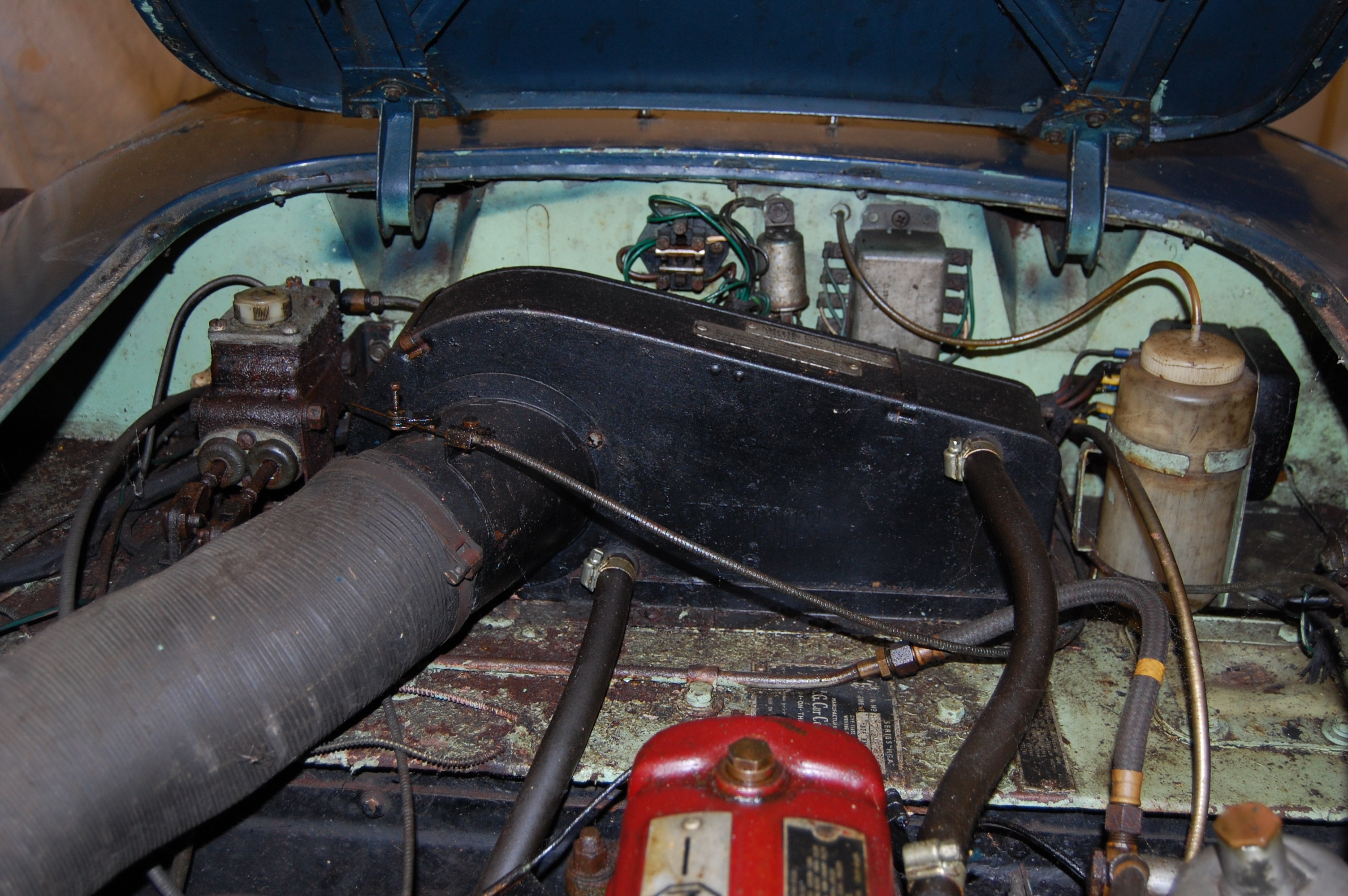

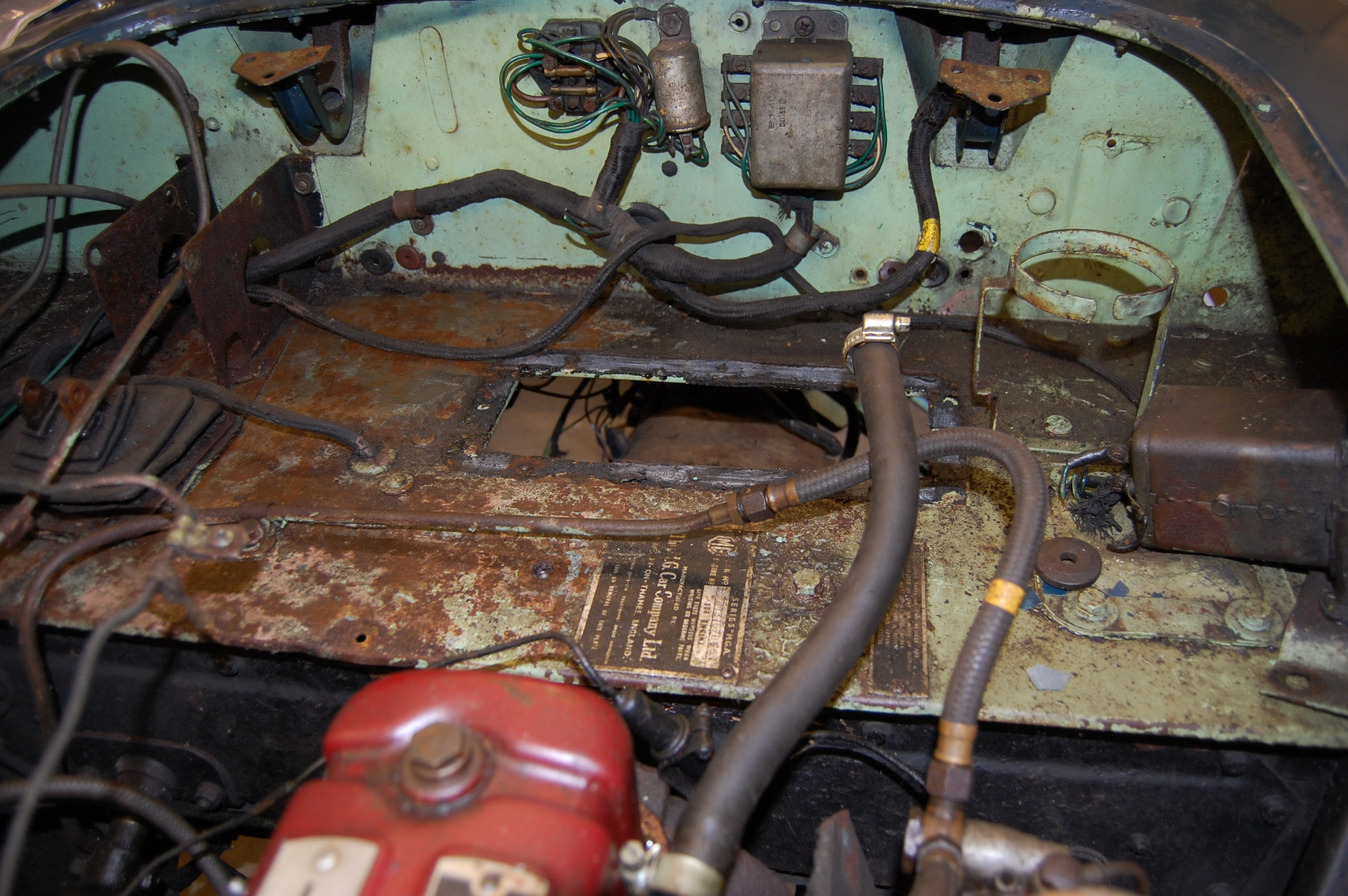

Original underbonnet – note position of fuel feed pipe.

Full Strip down of body in readiness for removing the body.

Full Strip down of body in readiness for removing the body.

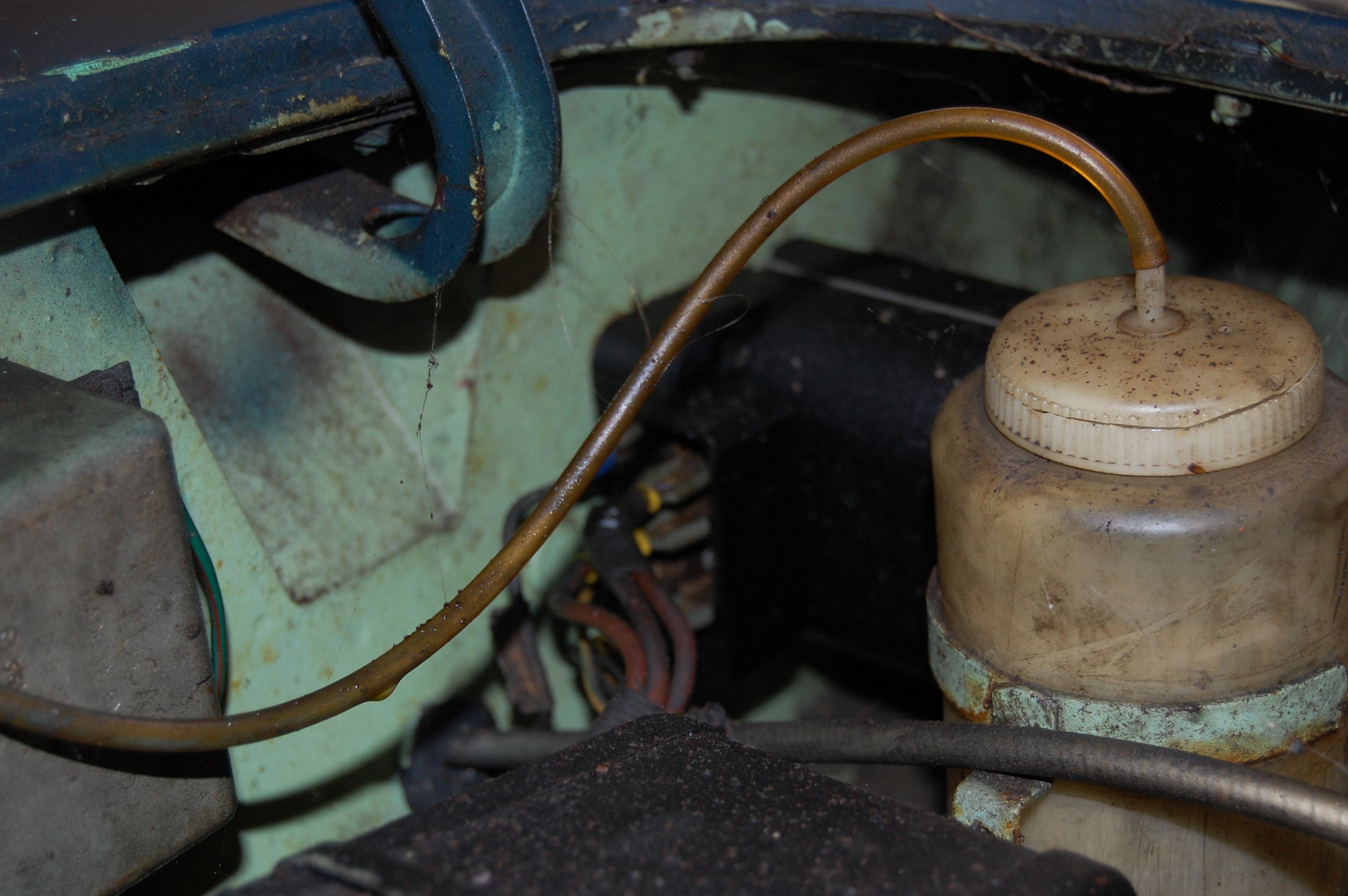

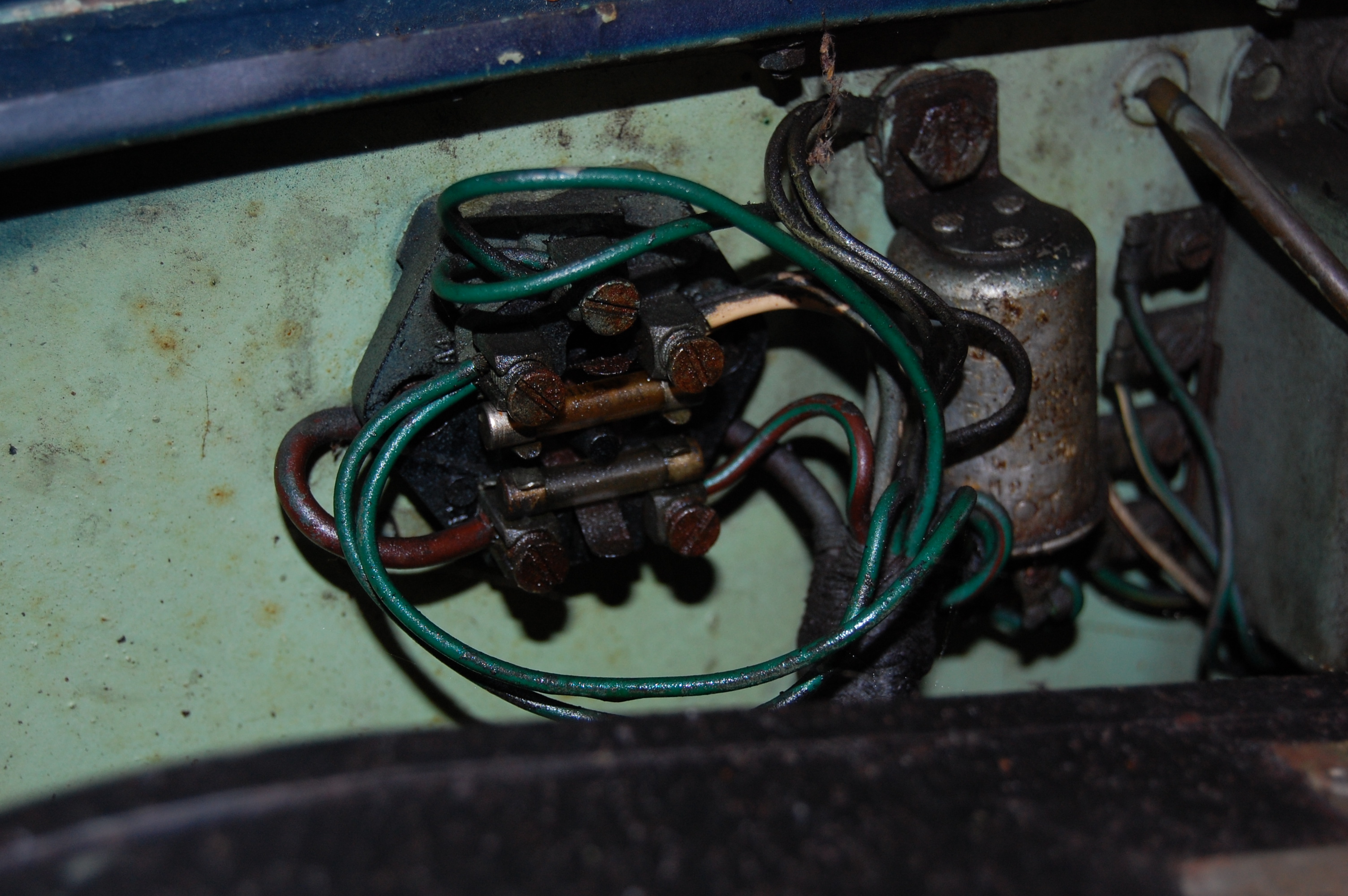

MGA Restoration 033MGA Restoration 034

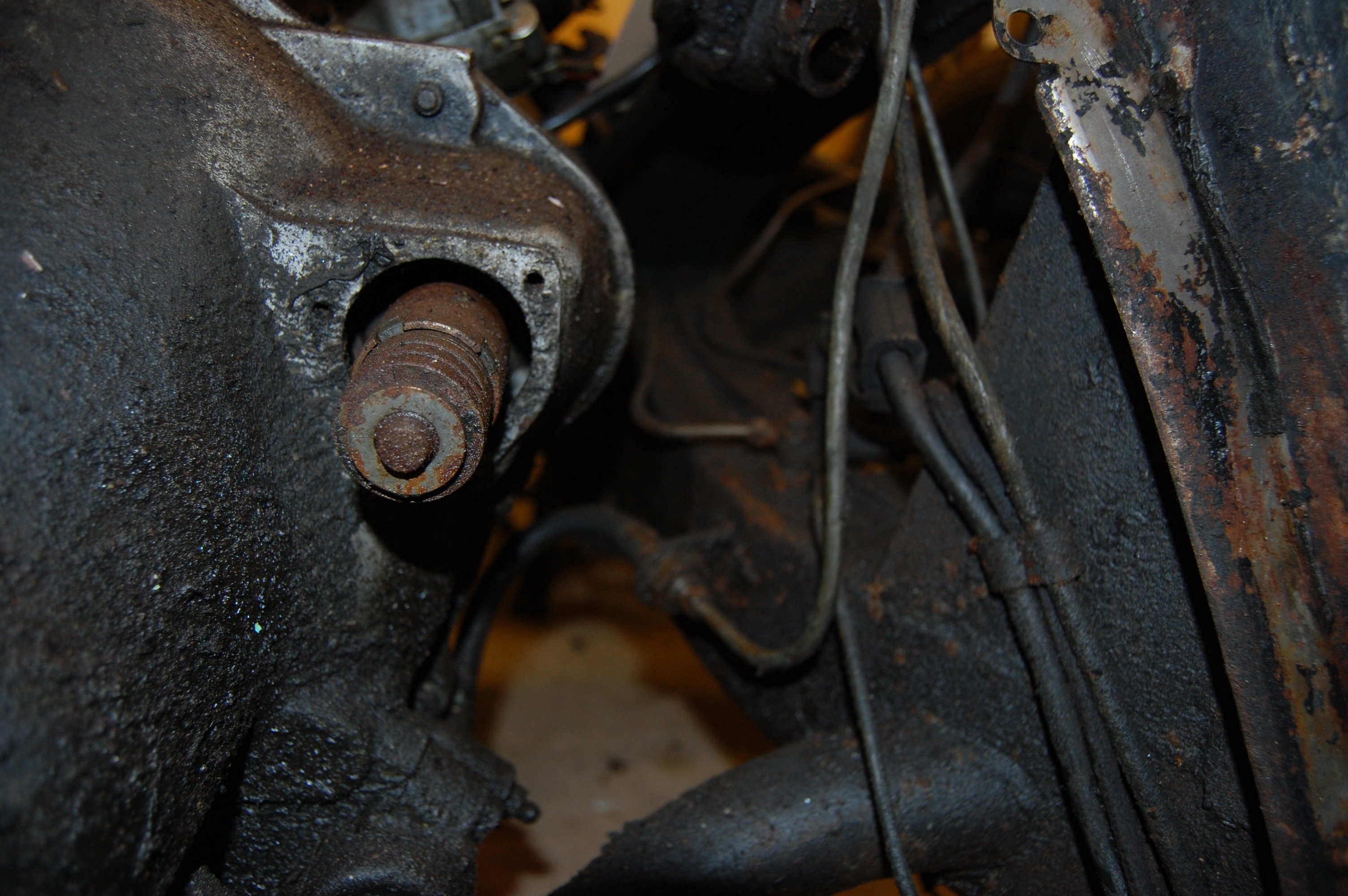

DSC_0004

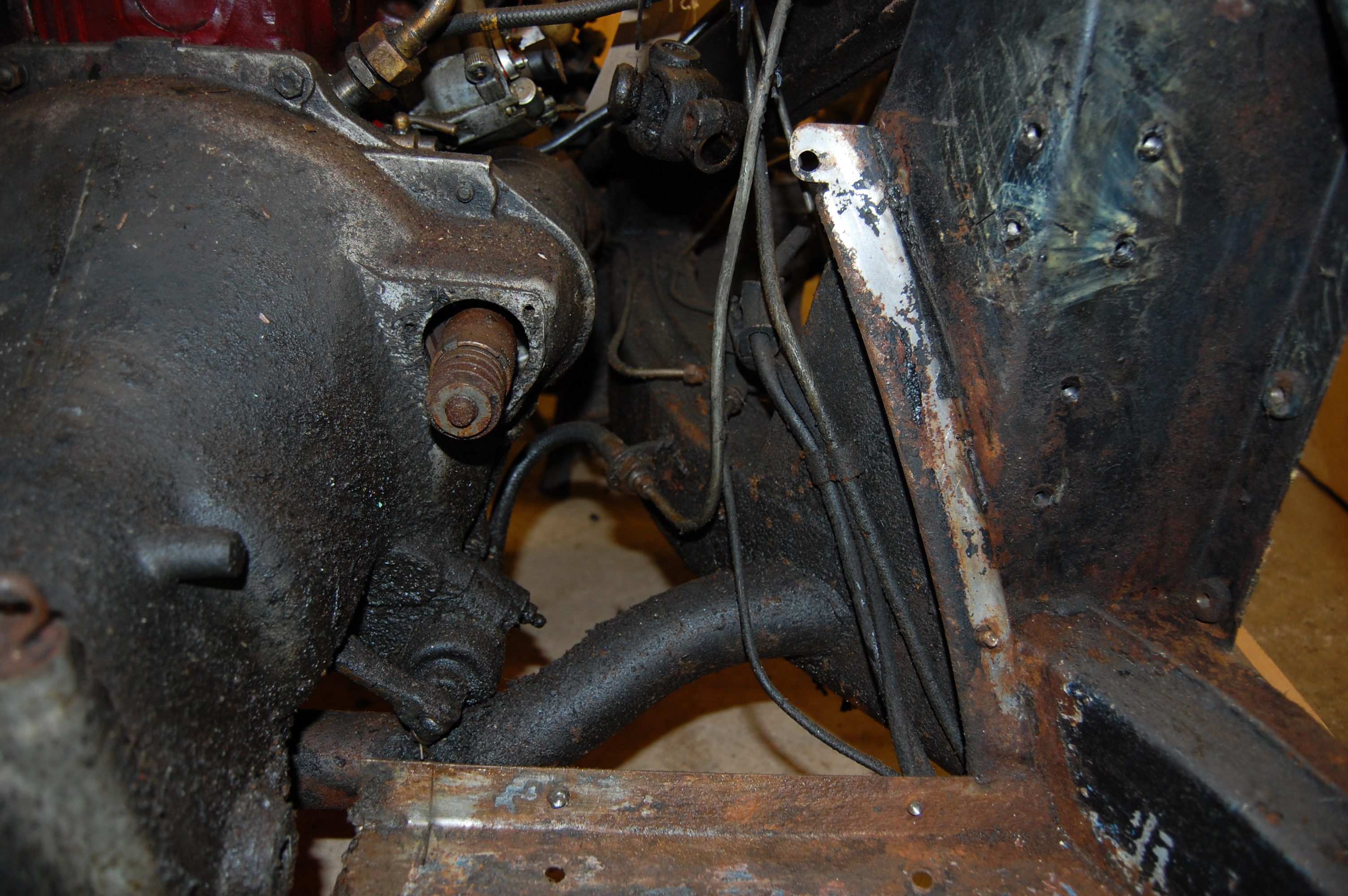

Left to right – Clutch pipe, master cylinder to slave cylinder – brake pipe, three-way union to rear brakes – main battery to solenoid cable – fuel pipe, fuel pump to carbs.

DSC_0003

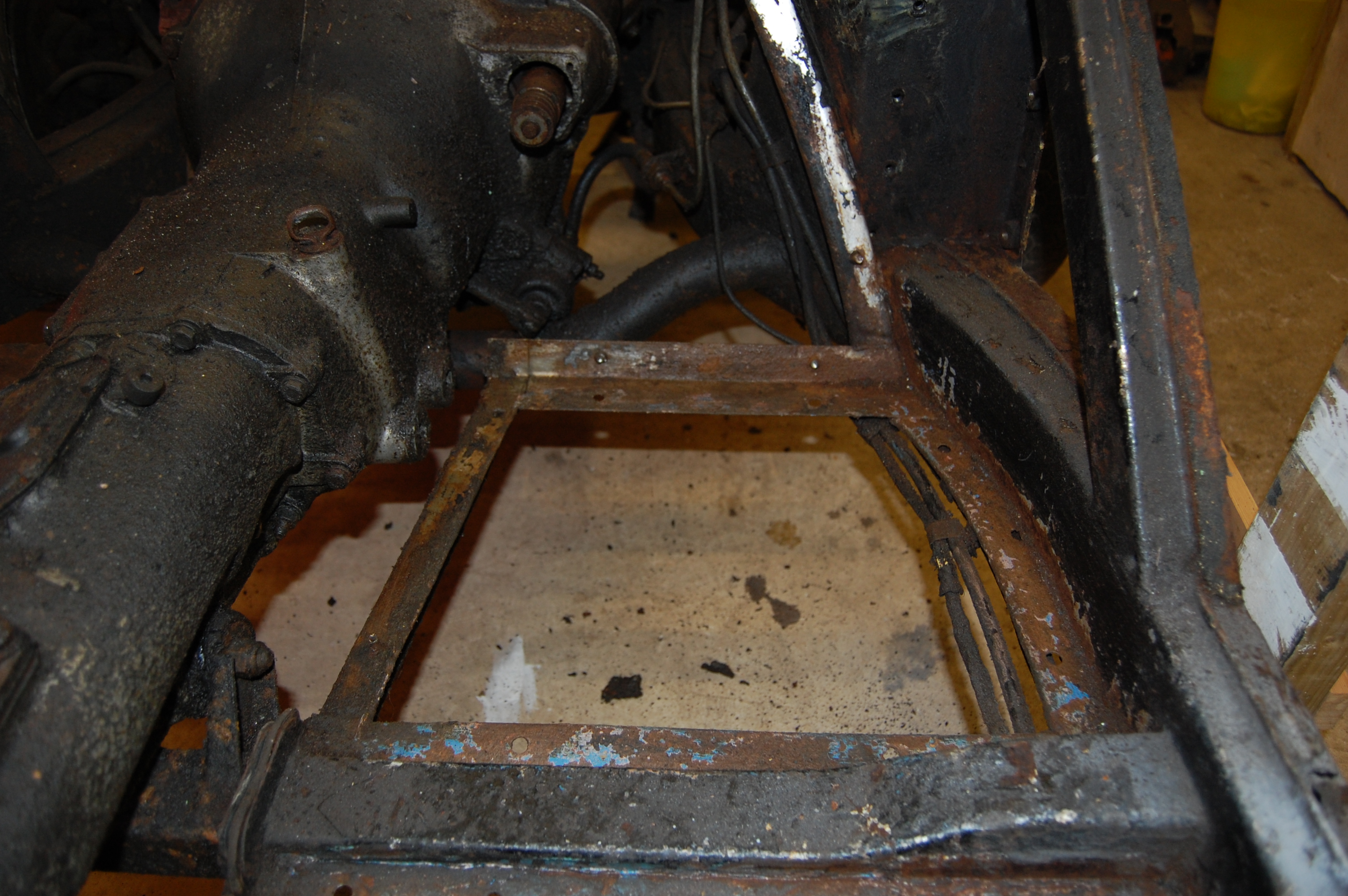

DSC_0005

MGA Restoration 008

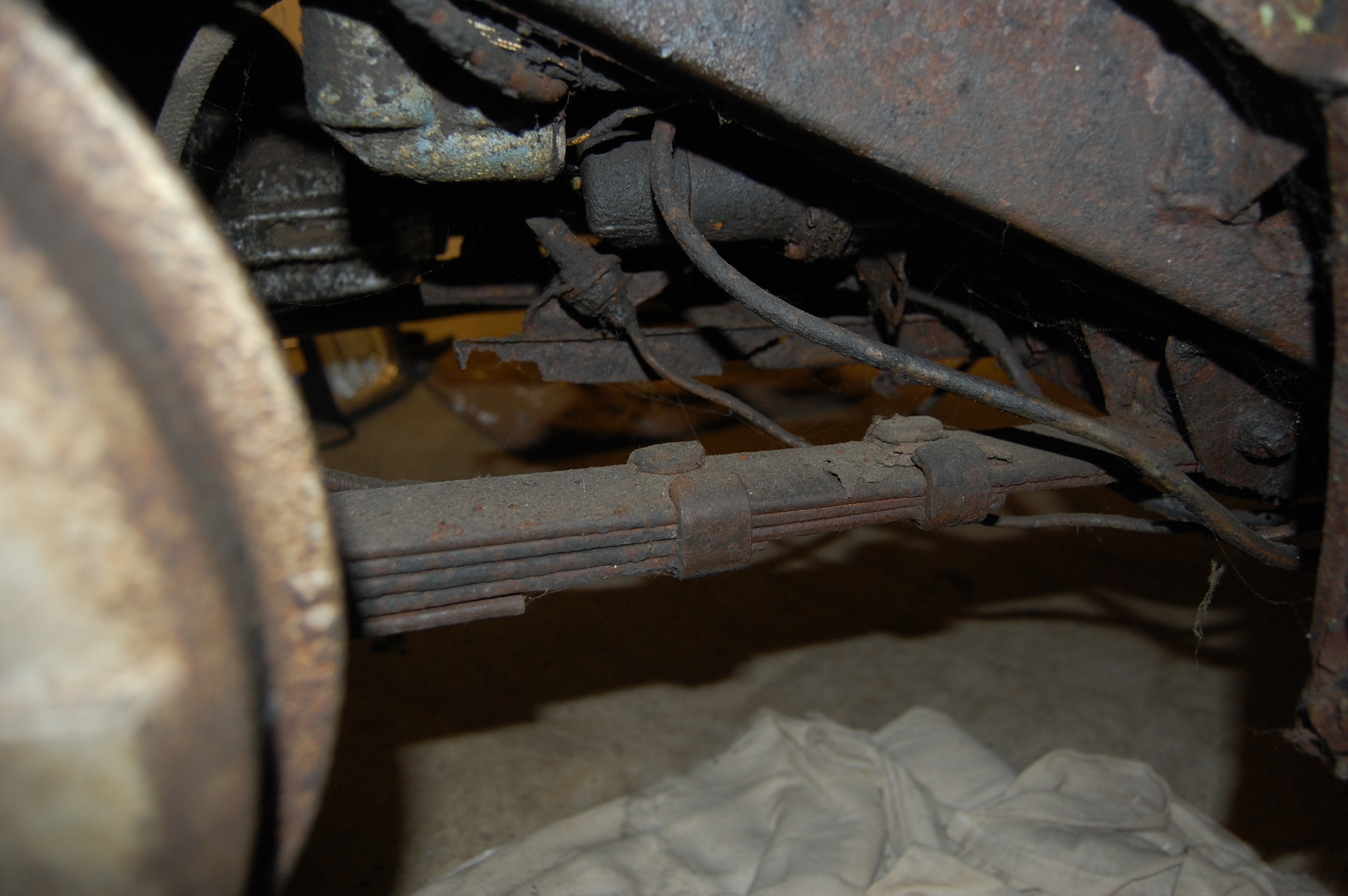

Fuel pipe from pump to carbs. The lower pipe is the rear brake pipe showing the attachment point on the right-hand battery carrier.

DSC_0001

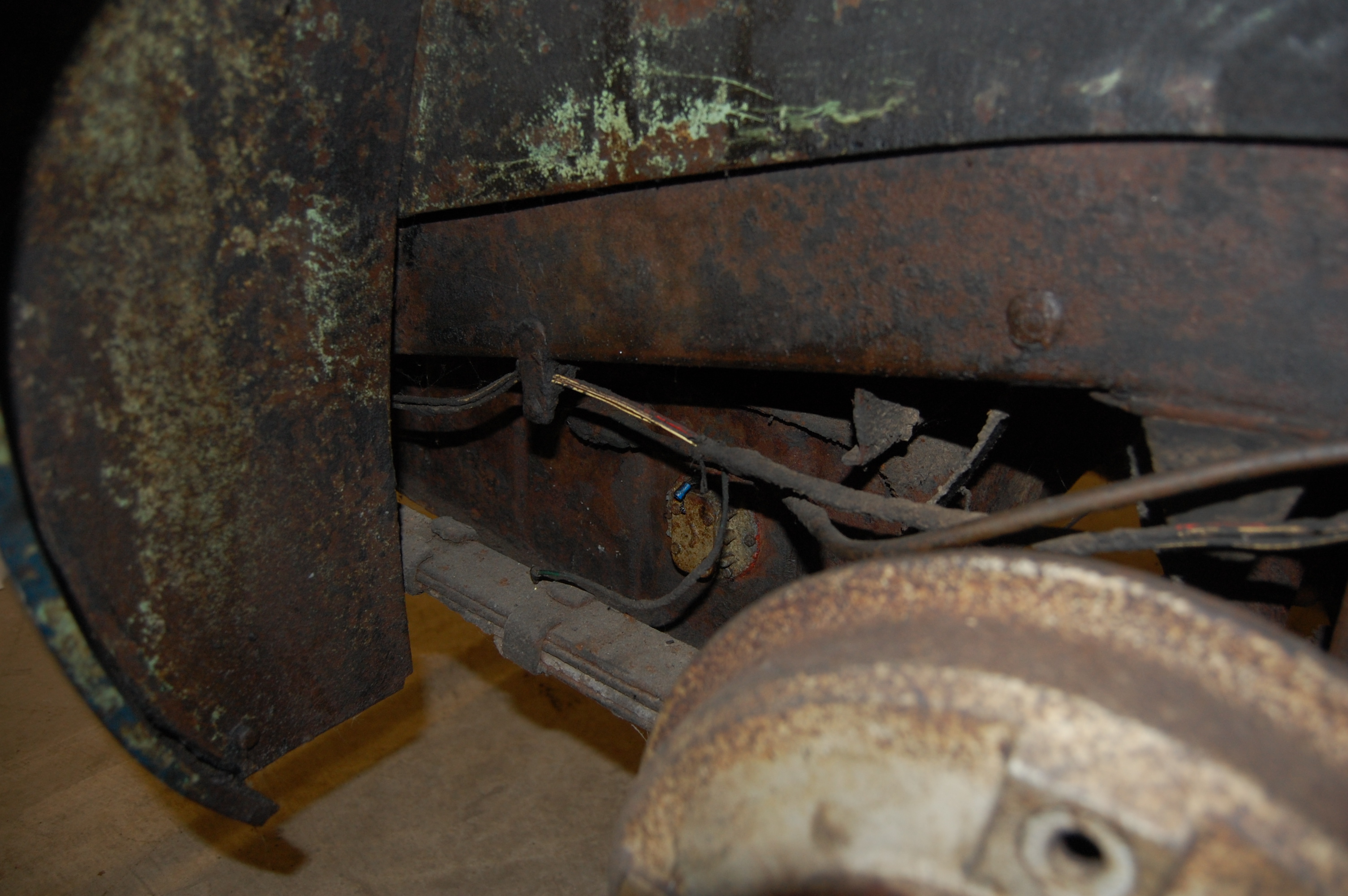

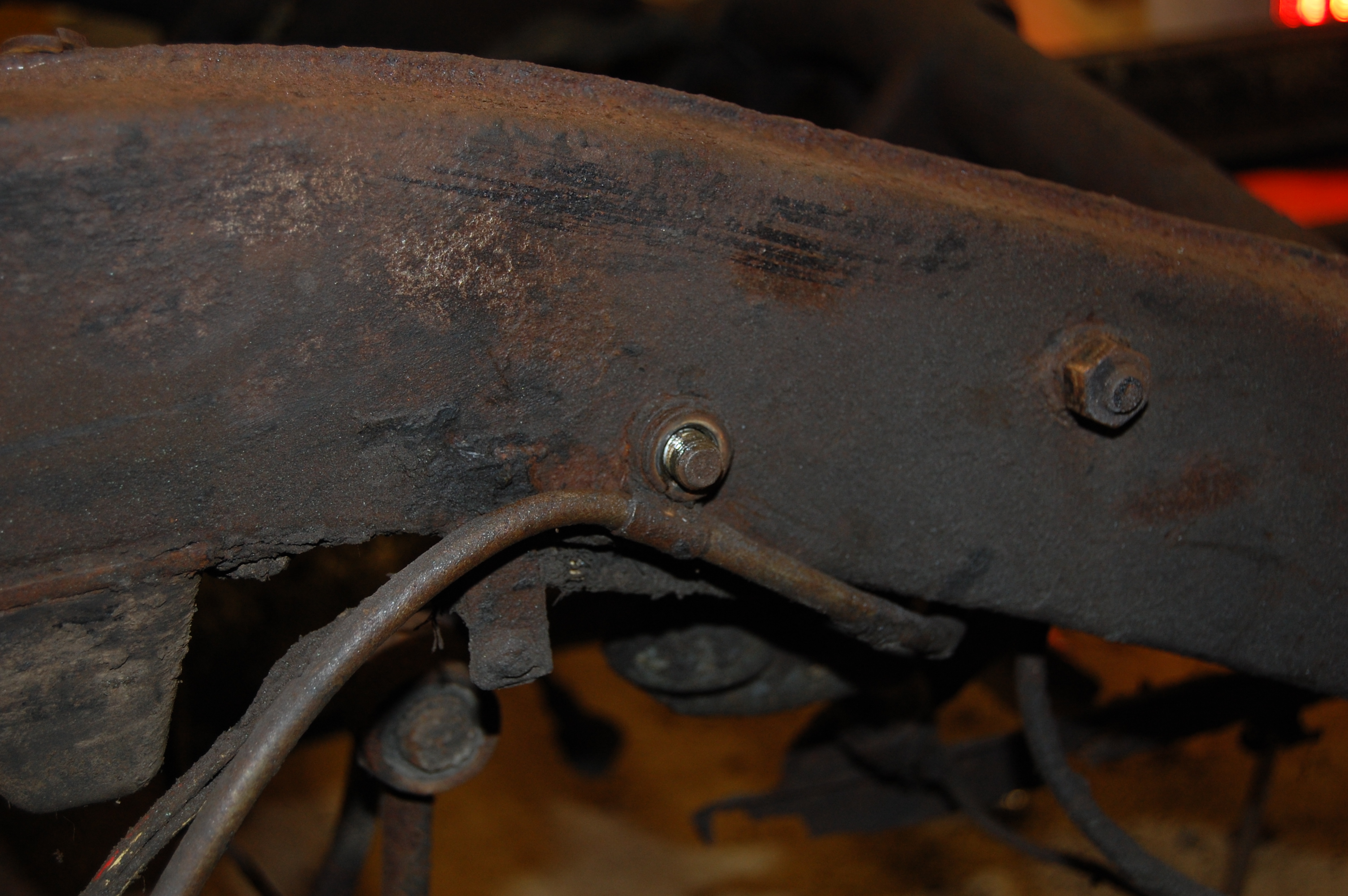

Fuel pipe from tank to pump runs outside of chassis and locates to the lower shock absorber mounting bolt.

Storage for many years was in a small lock-up garage just half a mile from the seashore with it's salt laden air. This was the worst period.

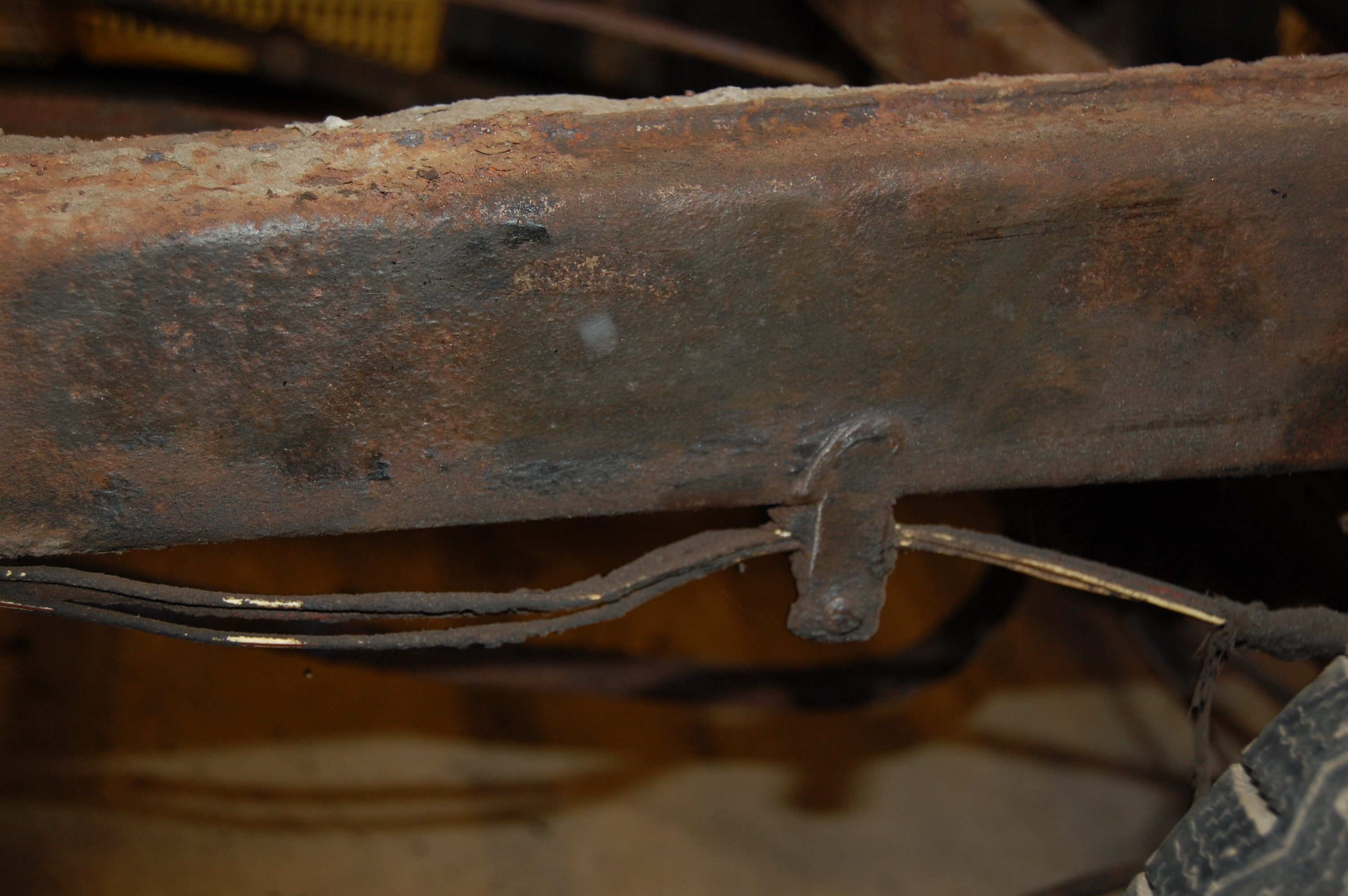

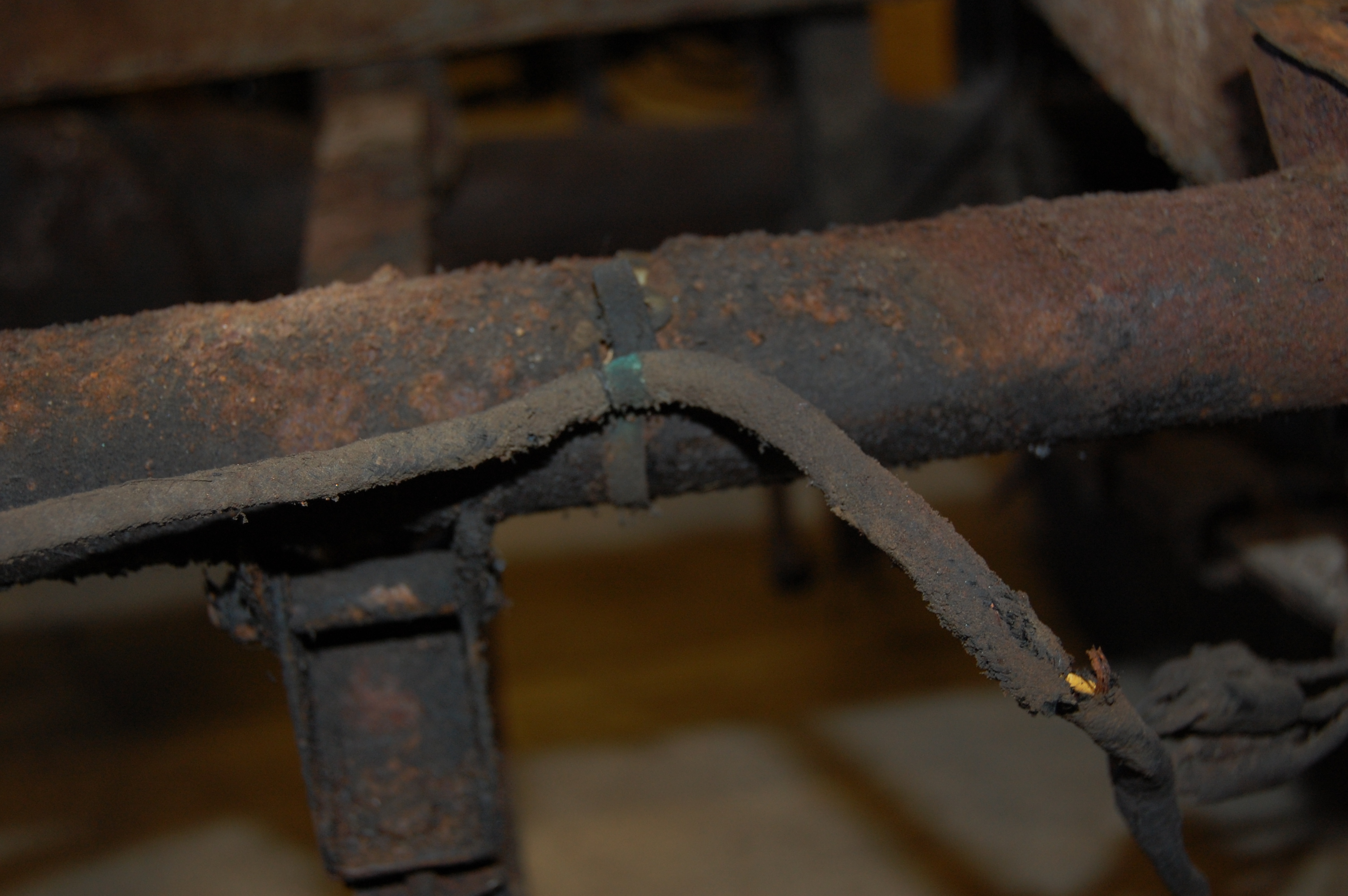

This shows the position of the wiring loom in relation to the fuel pipe, with the spur to the tank sender unit.

DSC_0267

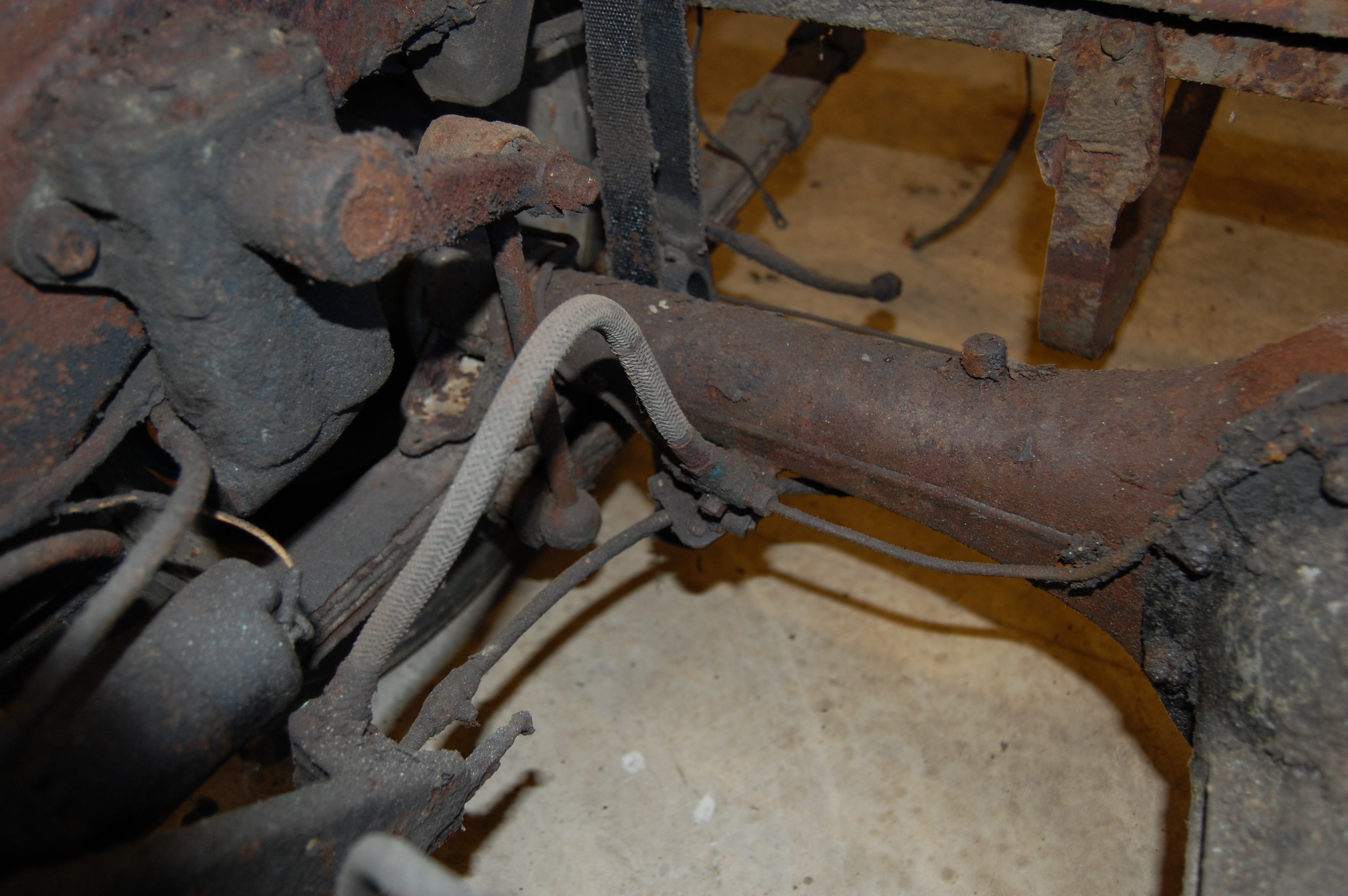

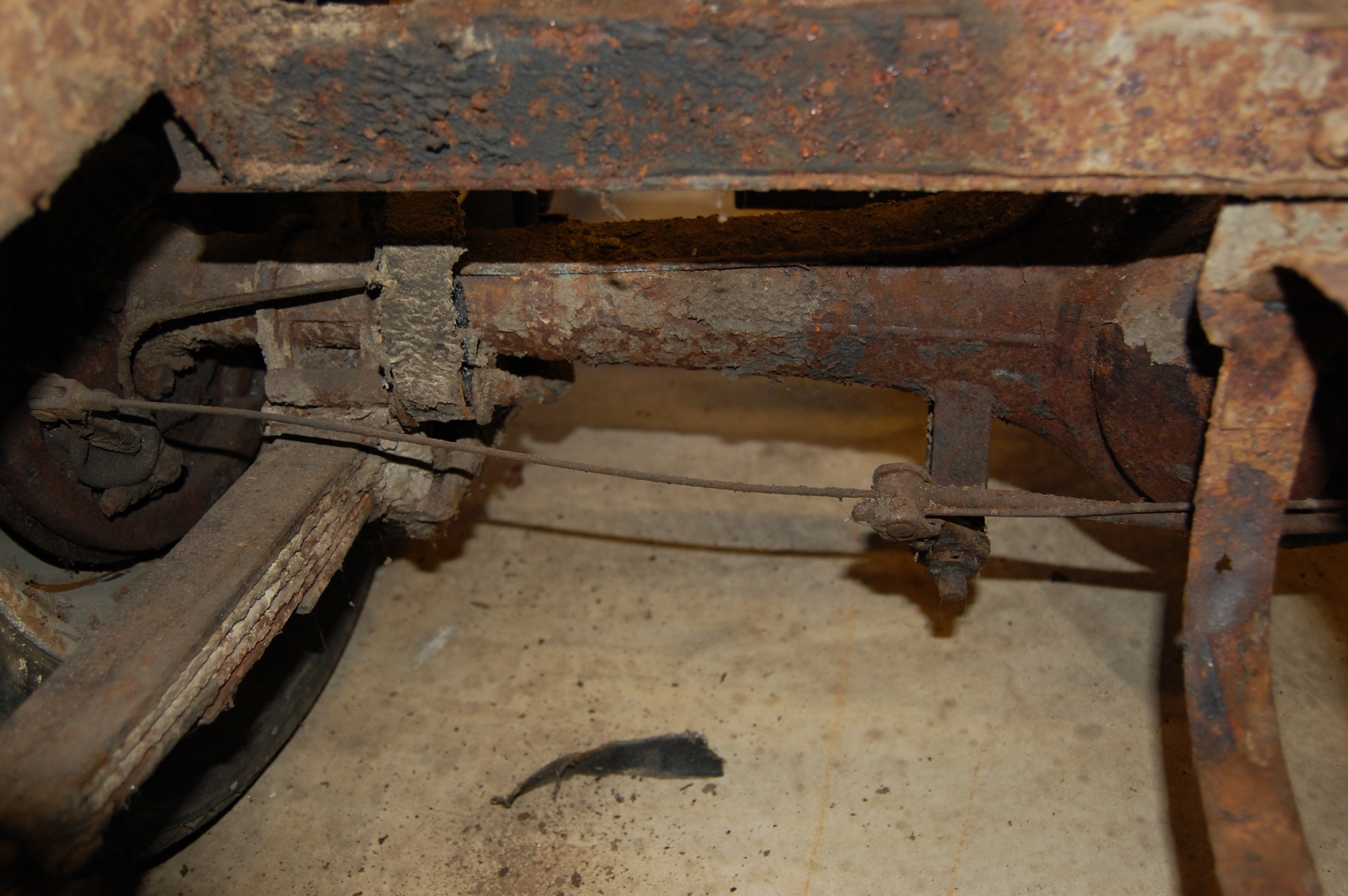

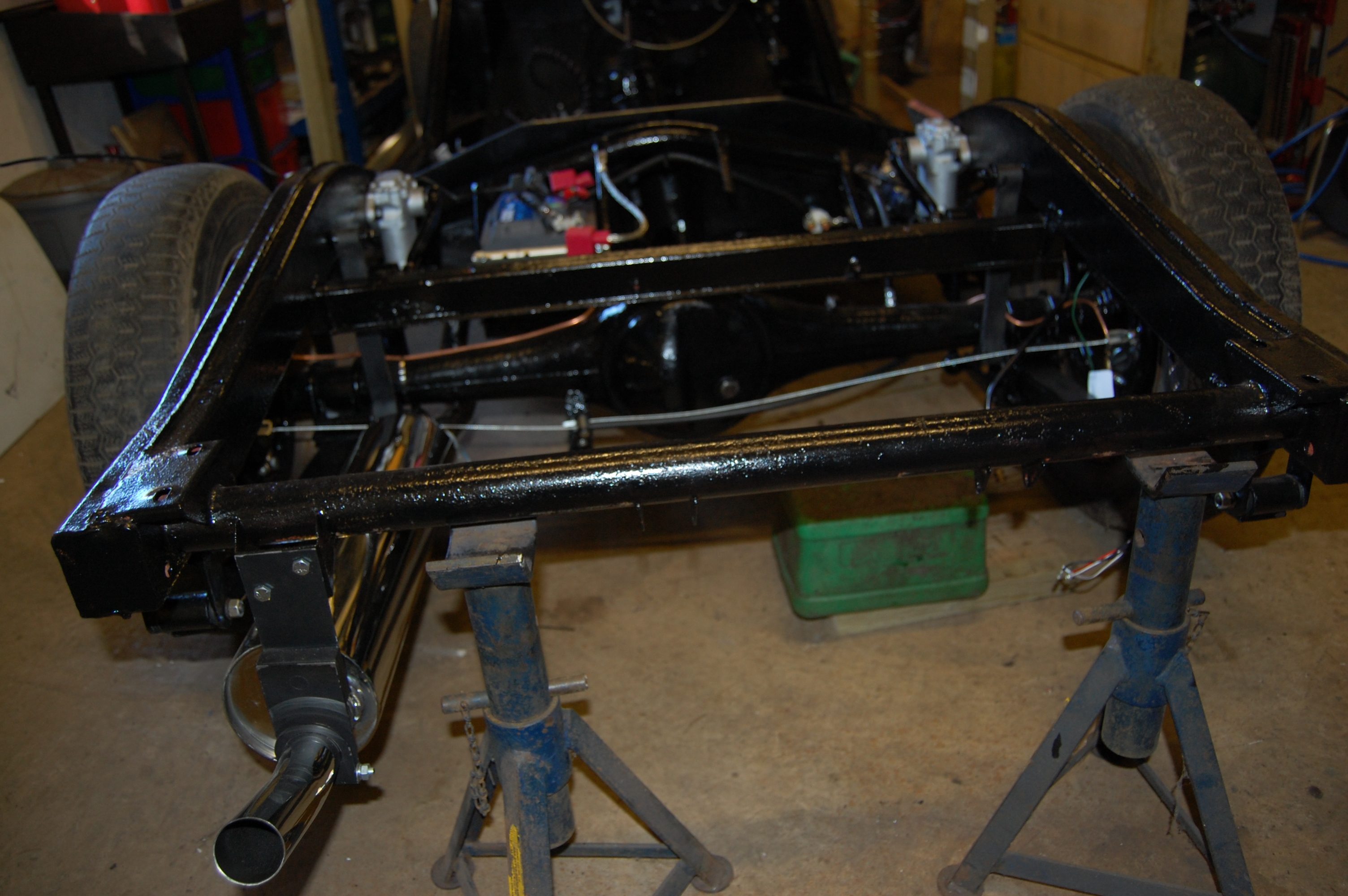

Of note here is the position of the rear brake flexible pipe from the battery carrier union to the two-way union where the pipes are split left to right, the right-hand pipe looping over the differential.

DSC_0268Amazingly, all the cable retainers unscrewed after cleaning up.

A few shots during chassis strip down, to help with building up again.

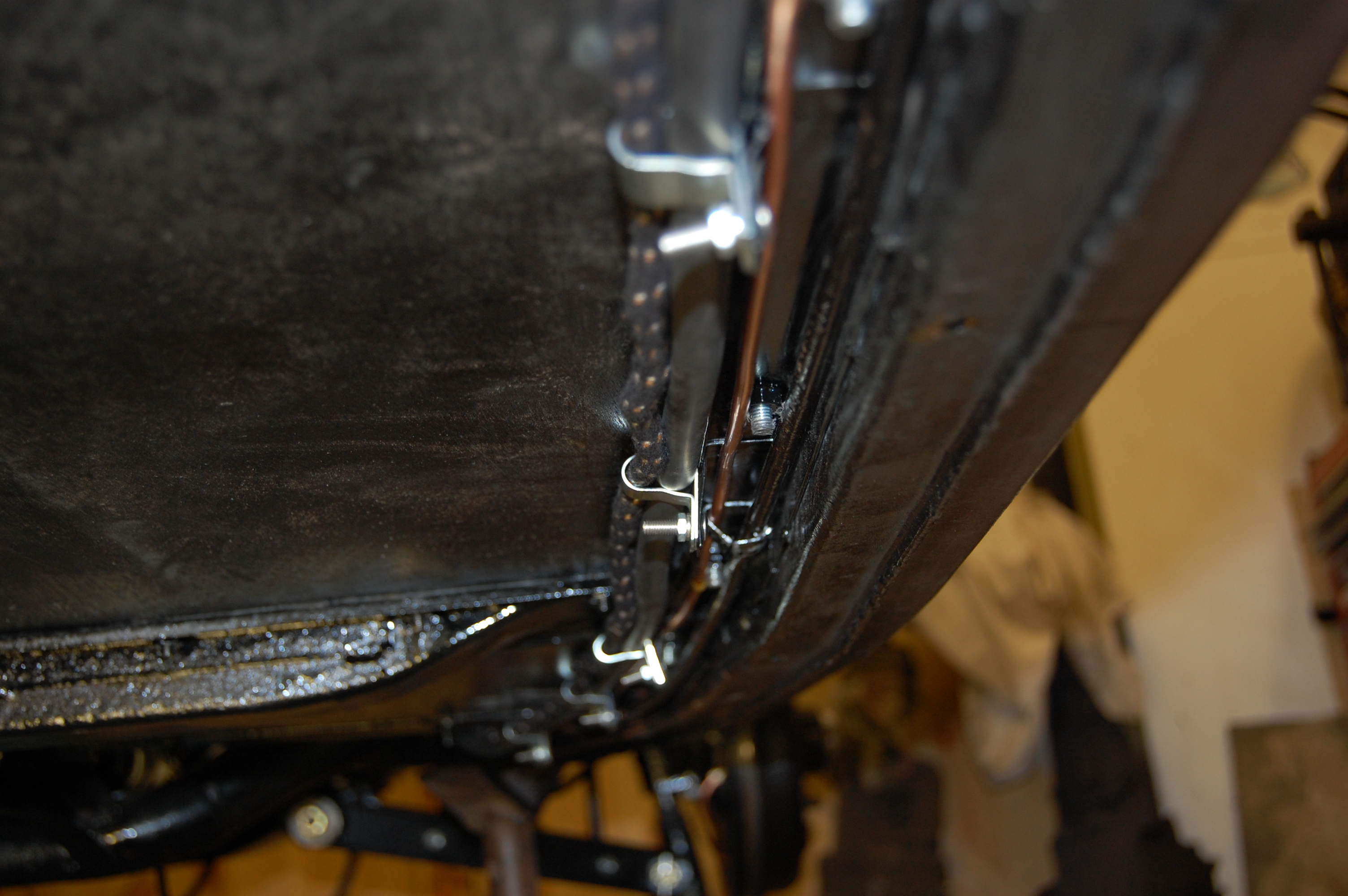

From the rear of the chassis the battery cable and side loom share the same ‘p’ clips mounted on vertical tabs attached to the floorboard rails. the main brake pipe front to rear and the fuel pipe share the parallel route between the floorboard rails and the chassis side (clip needs tightening!)

DSC_0029_04

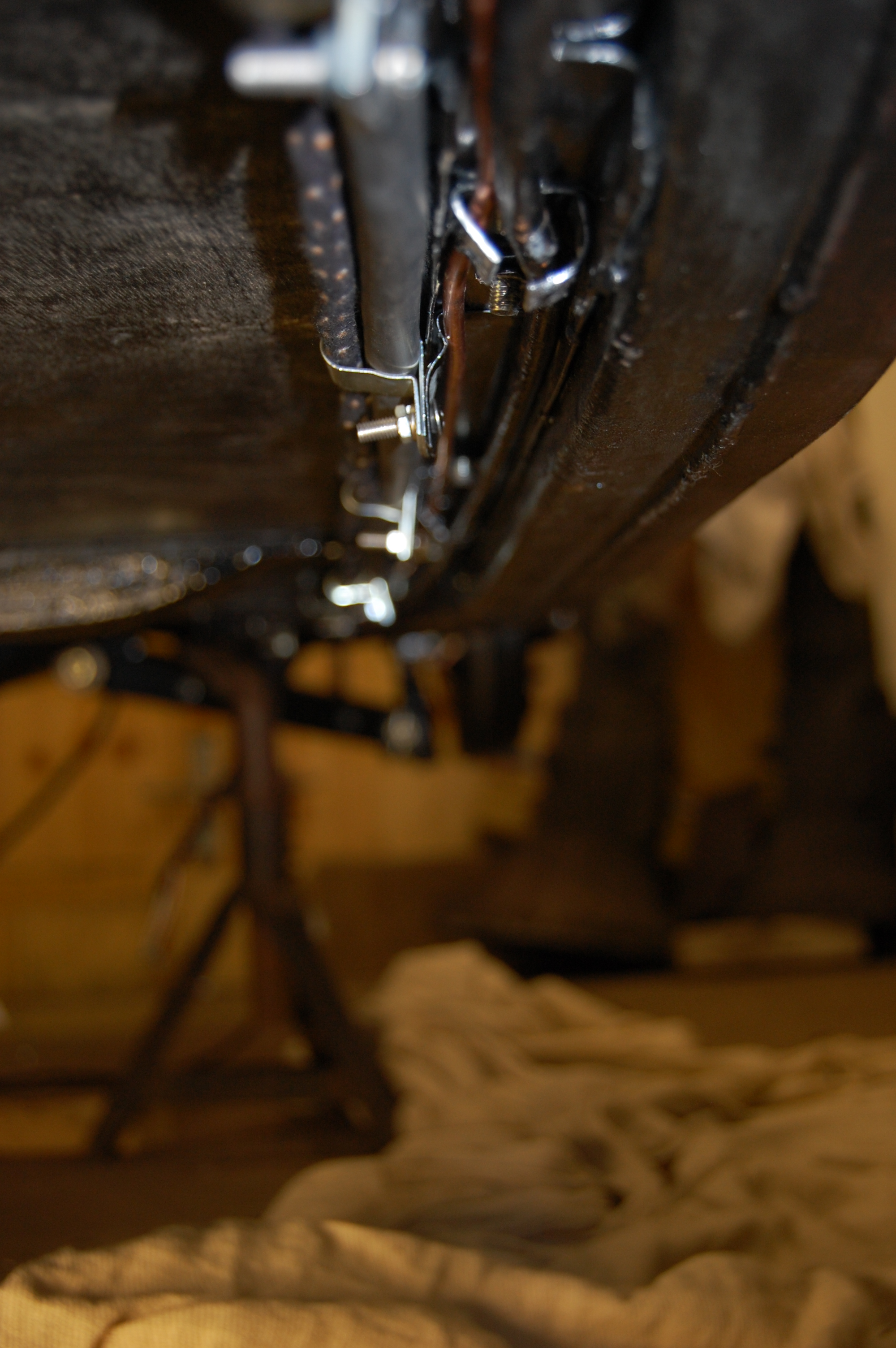

The retaining clips for the fuel and brake lines are in the form of tabs attached to the outer floorboard rail and are simply bent into position once the lines are in place.

DSC_0029_04

Battery lead and loom secured in ‘P’ clips that bolt to tabs welded to the chassis.



DSC_0071

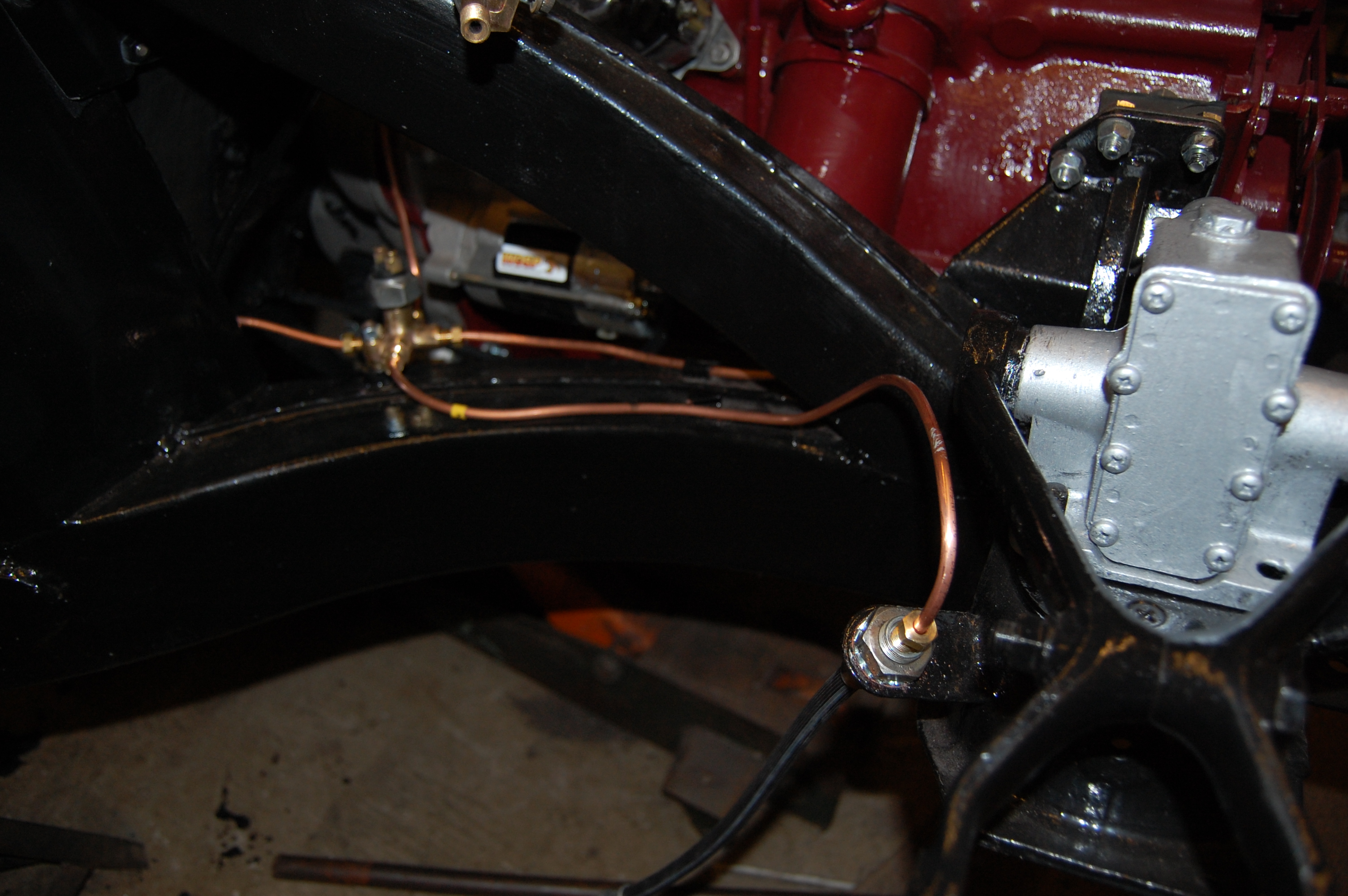

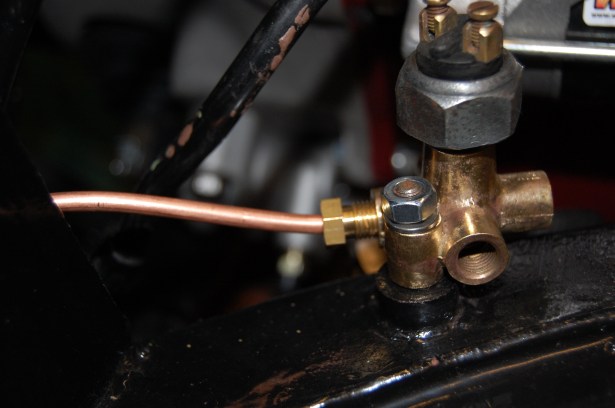

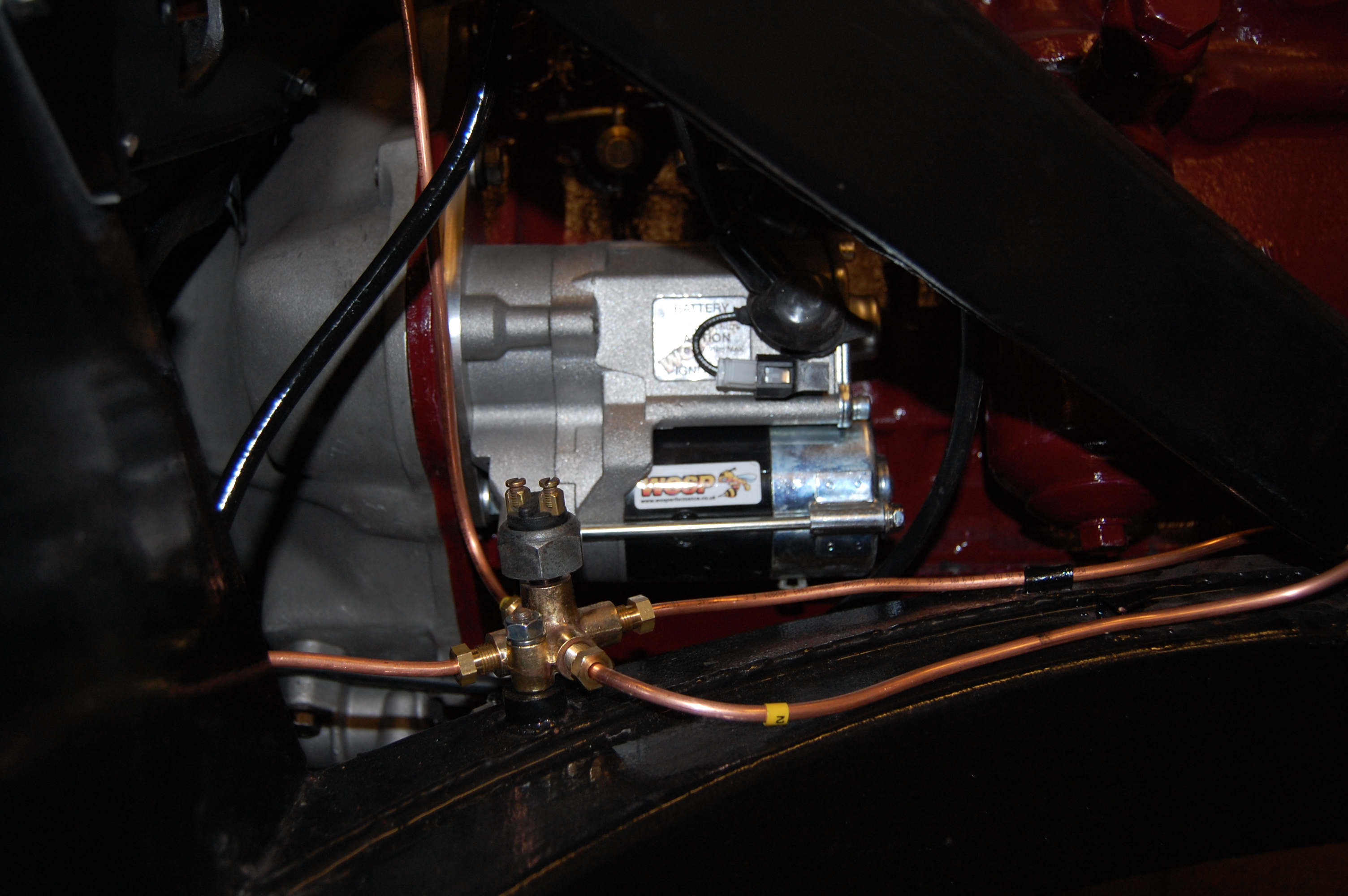

Three-way union and brake light switch mounted on the chassis to the right and forward of the chassis goal-posts. this is the original one cleaned up.

DSC_0092_01

In this shot is the new Wosp hi-torque starter that is a worthwhile upgrade.

DSC_0091

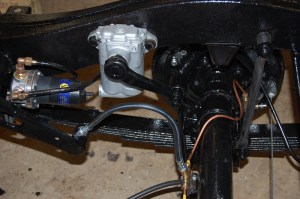

MGA 1500 Rear axle

MGA 1500 Rear axle

A friend pointed out that the trunion bolts are back to front i.e. castellated nut should be at the front. I think that's correct as factory fitted, but all the parts guides show the reverse. Maybe it would lose a few points in a concours , but as I have no intention of doing that, they will stay as they are.



DSC_0030_02

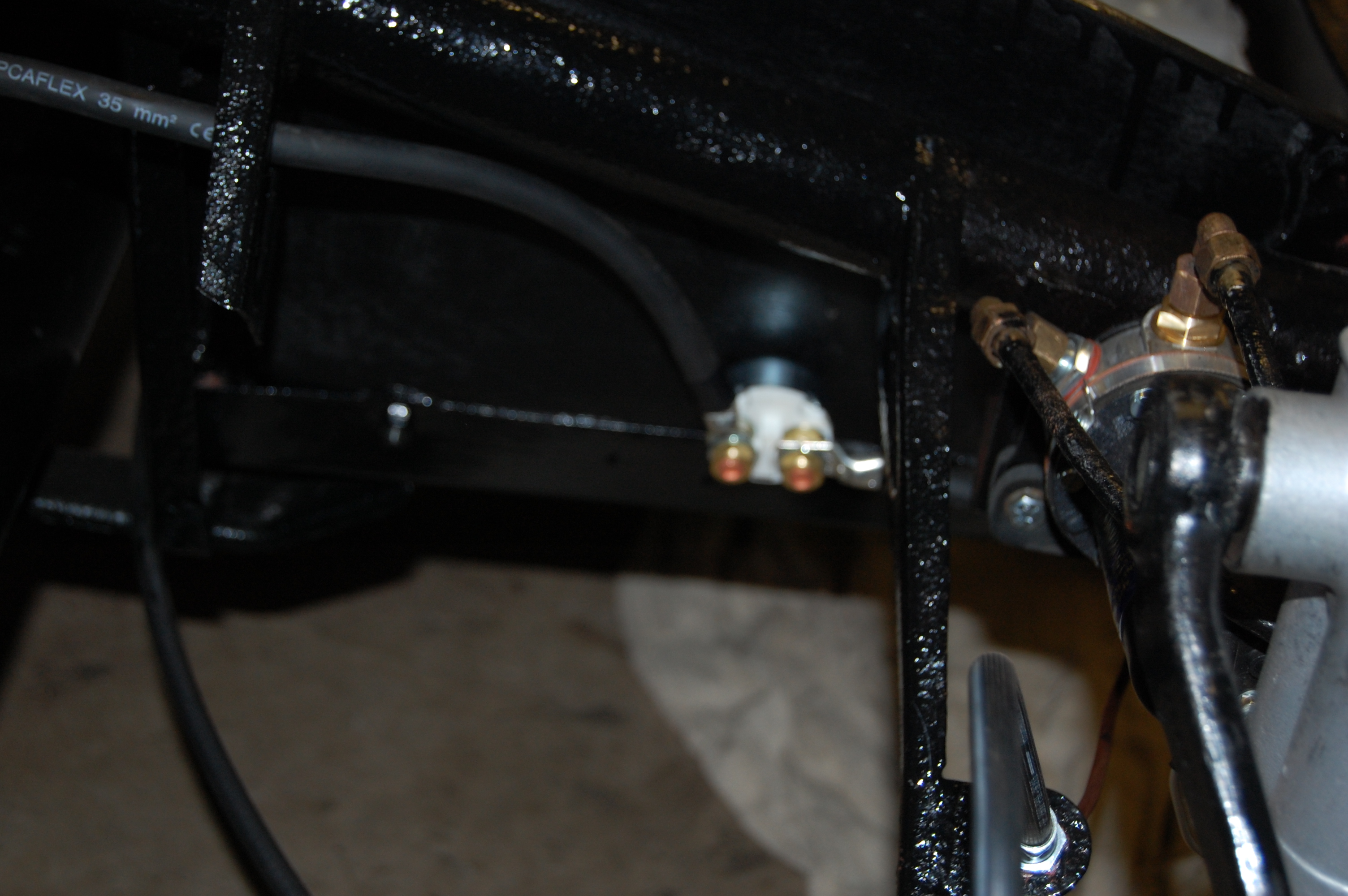

I added in a battery isolation switch, fitted in-line on the main battery cable.

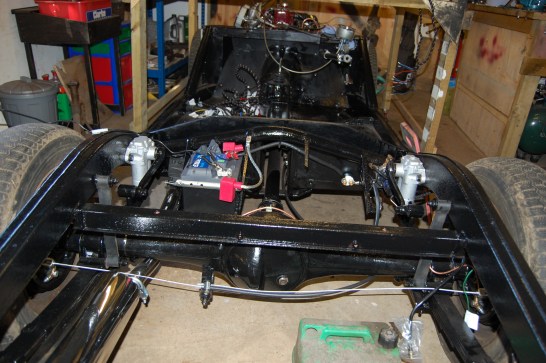

Chasssis temporarily off stands and on original wheels and tyres. Original 41 year old Michelin ZX's still hold their pressure, but will be replaced once the wheels have been blasted and painted.

DSC_0041

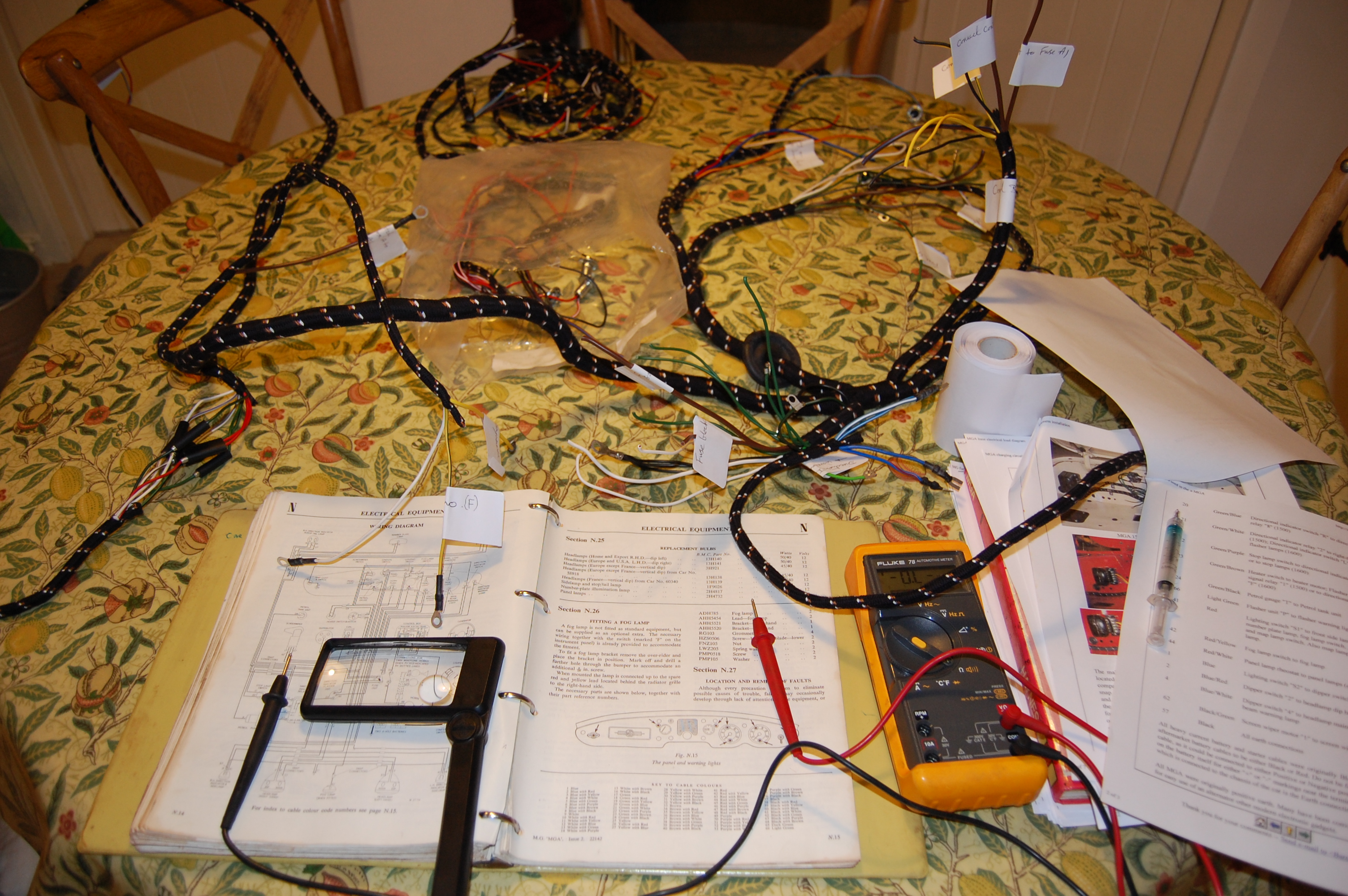

Winter indoor work…marking up the wiring loom. MGA 1500 wiring loom.

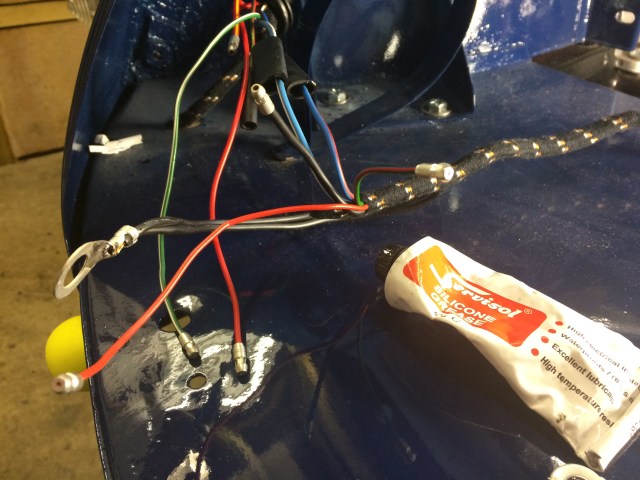

There are several points in the loom where sub looms are connected by bullet connectors. In every case, I slathered the male and female connectors with electrical silicon grease and then wrapped in black insulation tape. I’m not that bothered how it looks, but don’t want to be faced with problems of poor connection at some later stage.

This is particularly important where the rear loom extension joins the main side loom, as this is very exposed to road dirt and water and also the front extensions to the side and head lights.

IMG_2336

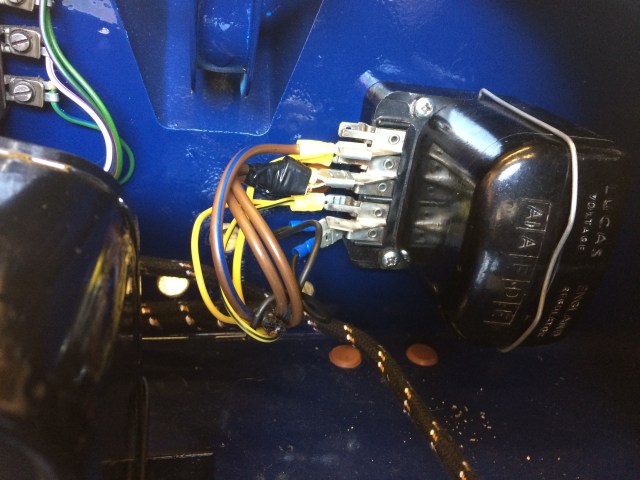

The control box is now only a junction box as I’ve fitted an alternator.

IMG_2313

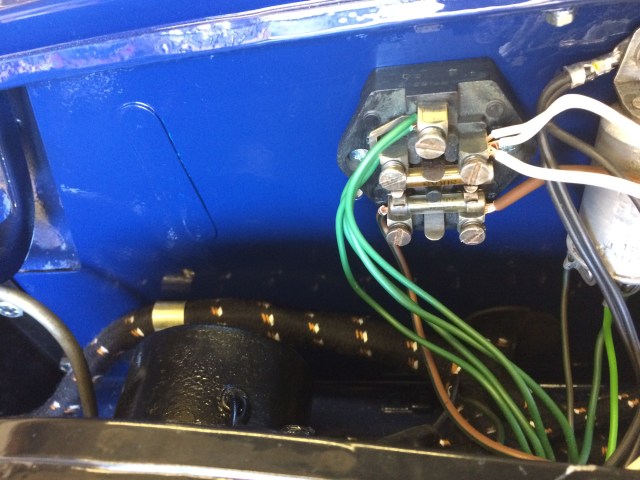

The wires into the fuse block were eventually tidied up a bit!

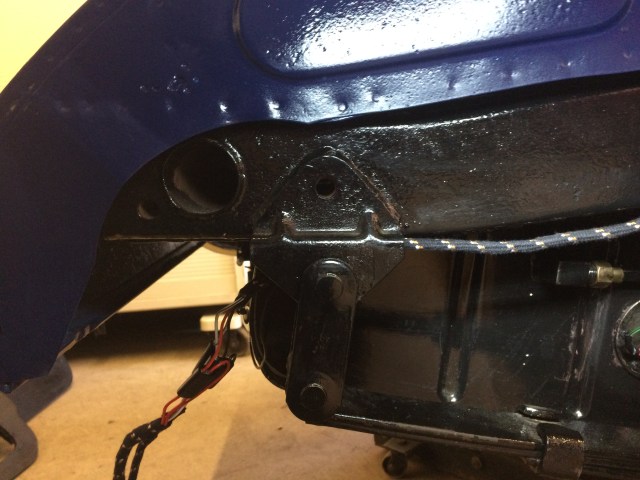

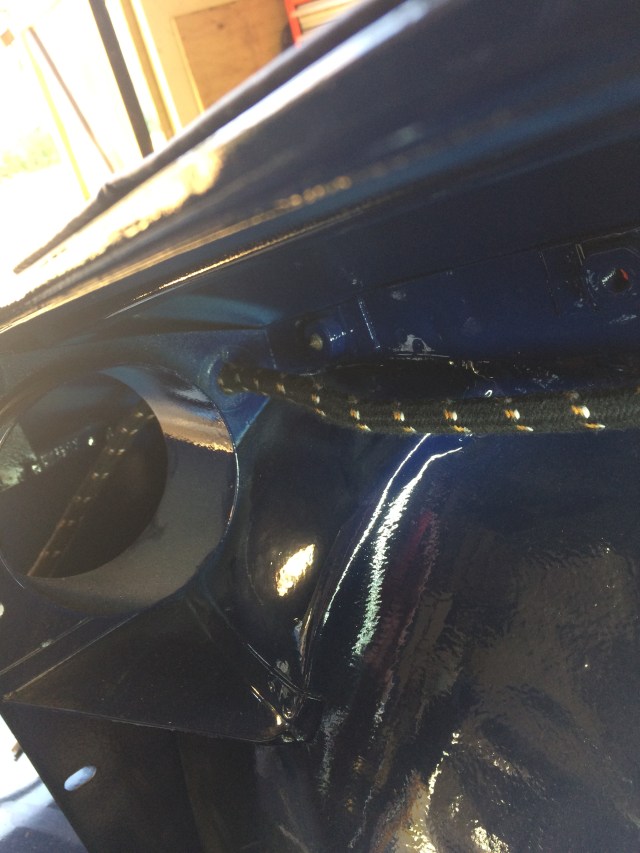

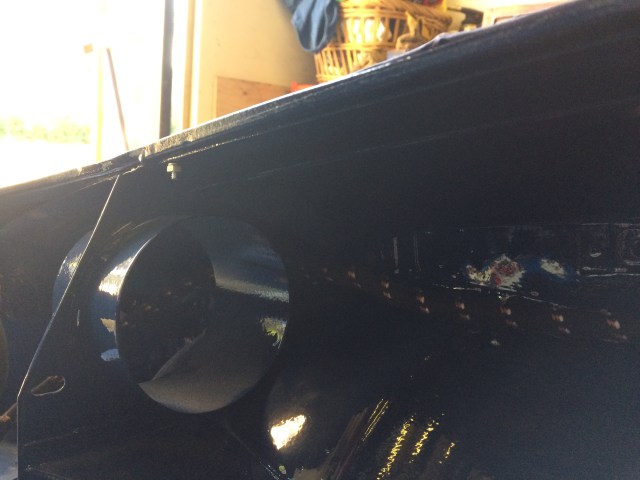

IMG_2314IMG_2315IMG_2316IMG_2317IMG_2318

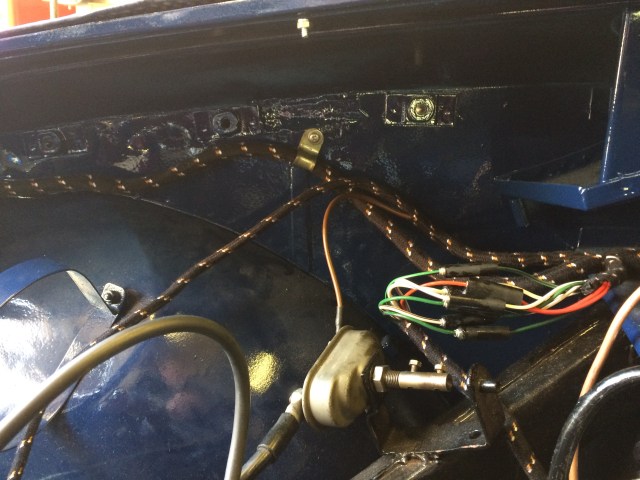

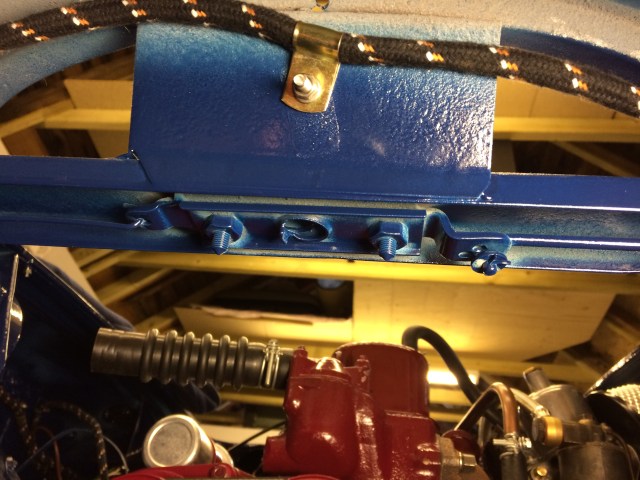

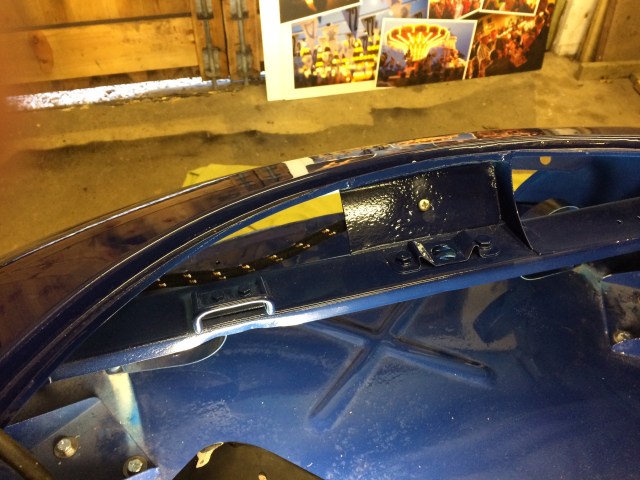

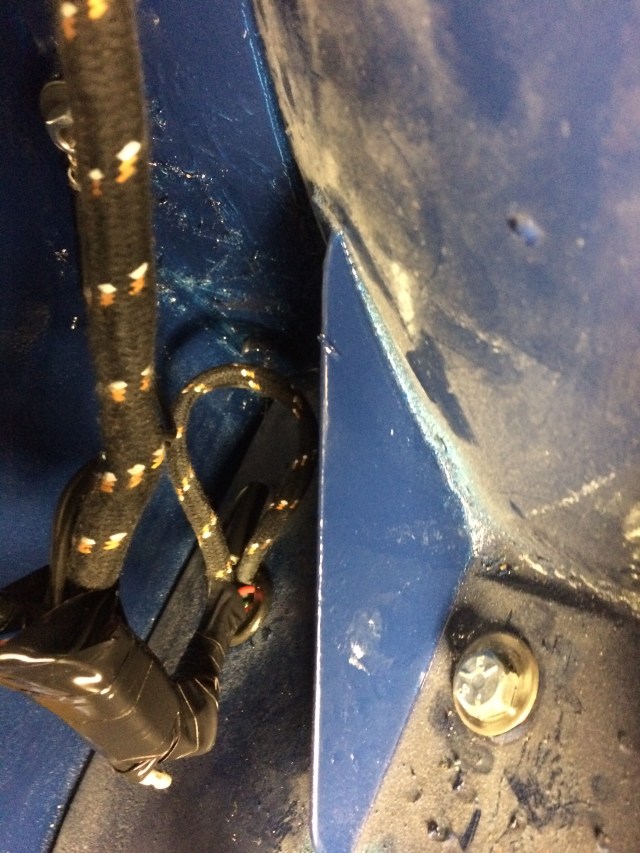

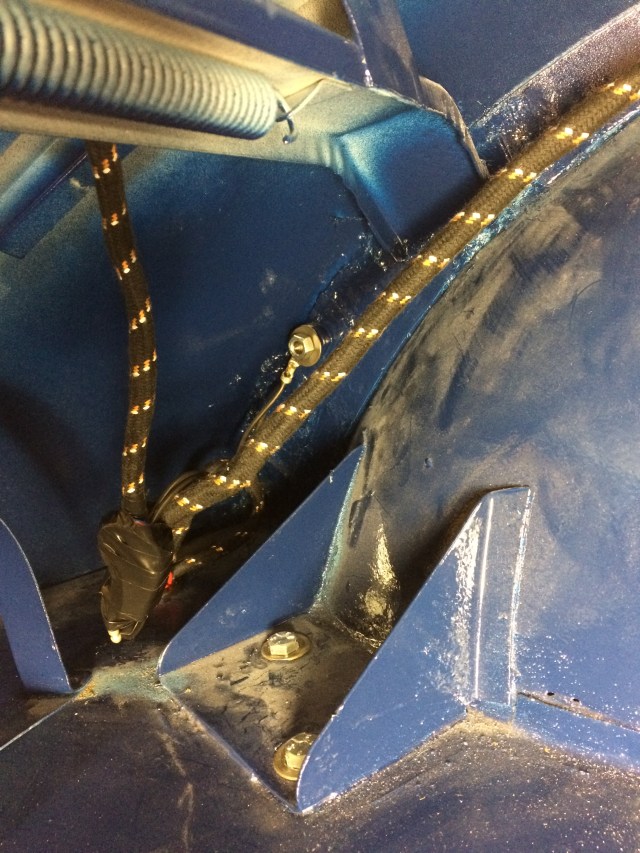

The picture below shows the greased and bundled connectors where the side loom splits to the horn wires and side/headlamps. Also shows where the paint didn’t reach!

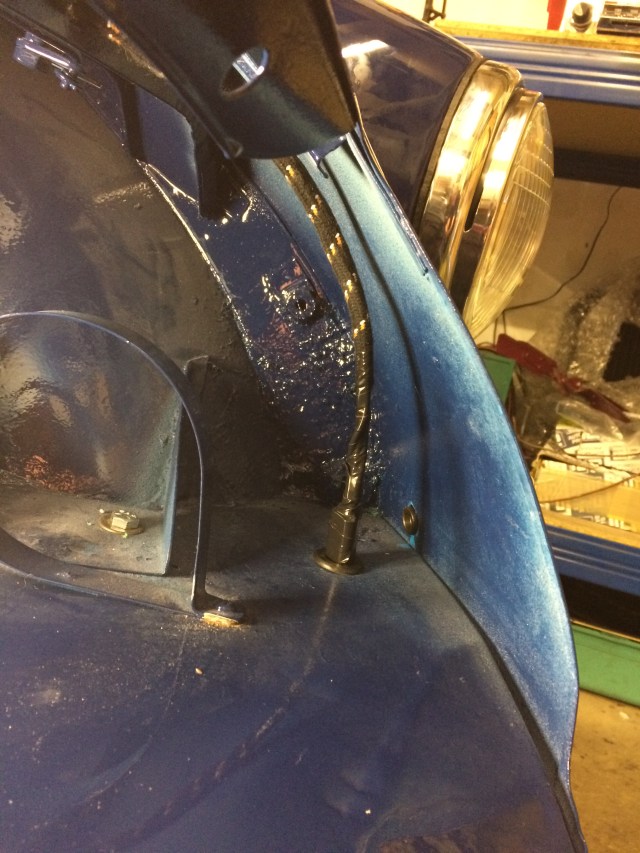

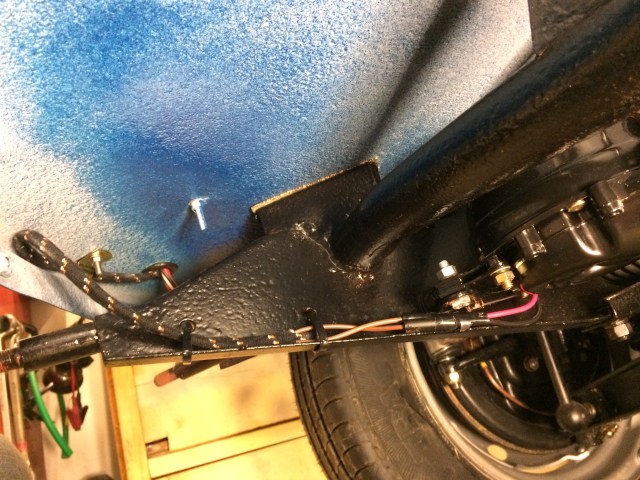

Note the earth lead connected to the elongated wing/fender bolt as was original, also that the fog lamp connector which is unused, is exposed – since insulated with a female bullet connector.

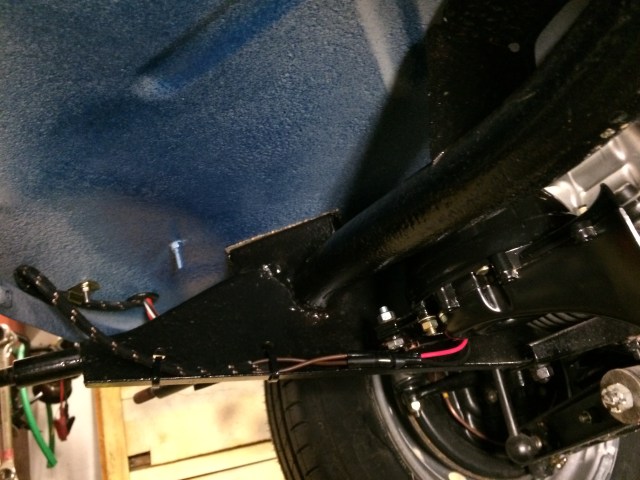

IMG_2403IMG_2404IMG_2405IMG_2406IMG_2407IMG_2408IMG_2409
